DCRV36
Off-Grid Vaccine Cold Chain
** When purchasing a container quantity

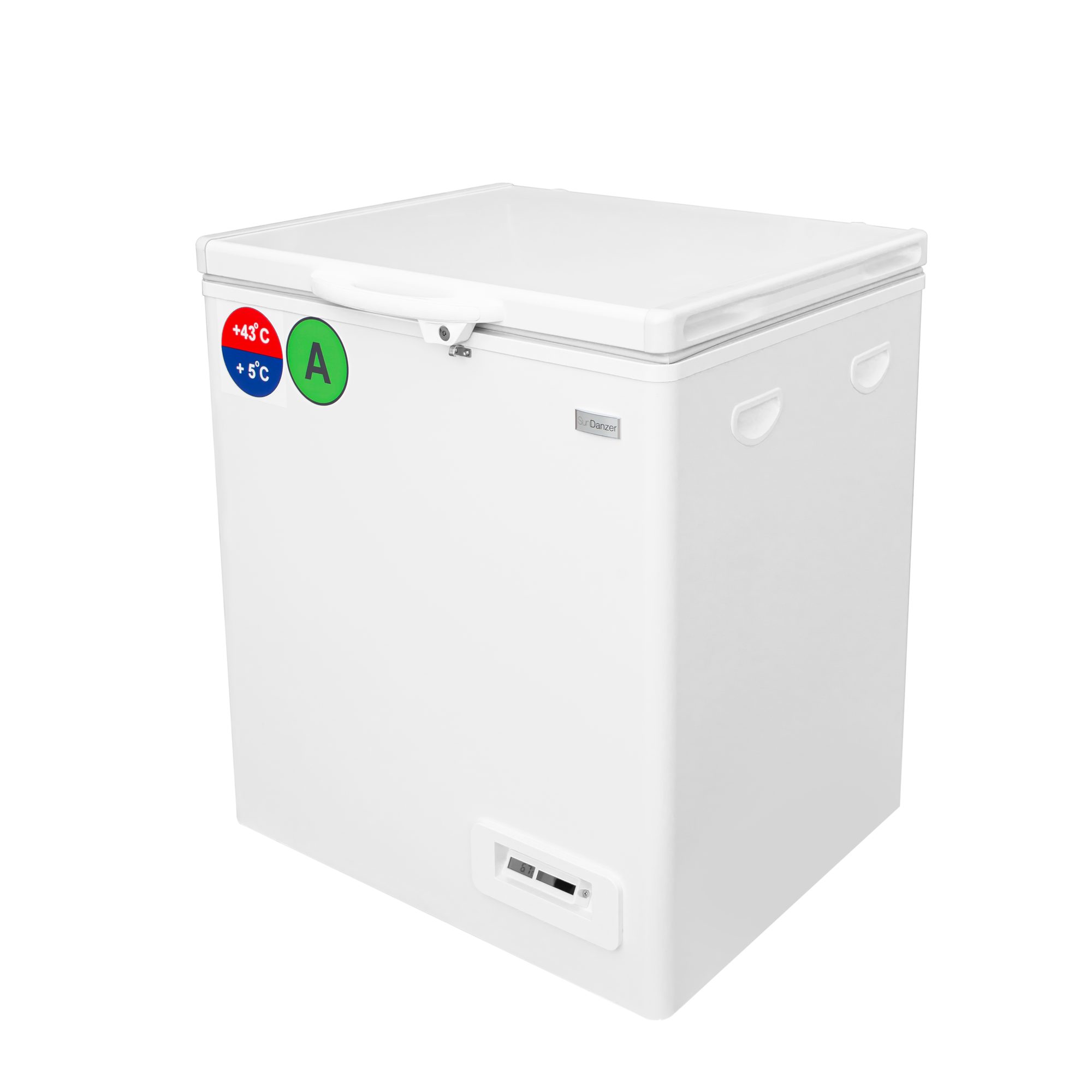

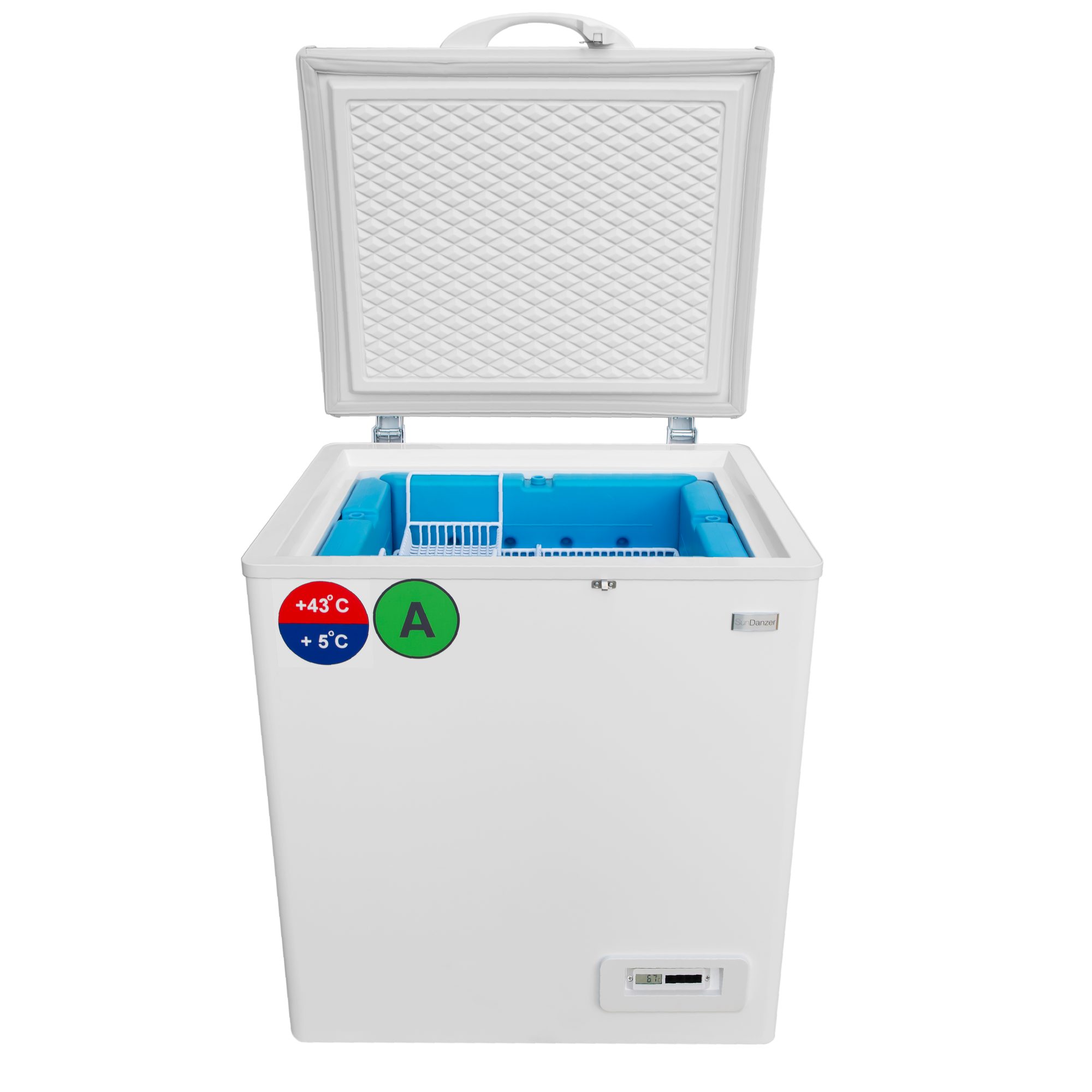

DCRV36
Designed to safely store vaccines in off-grid applications without intervention

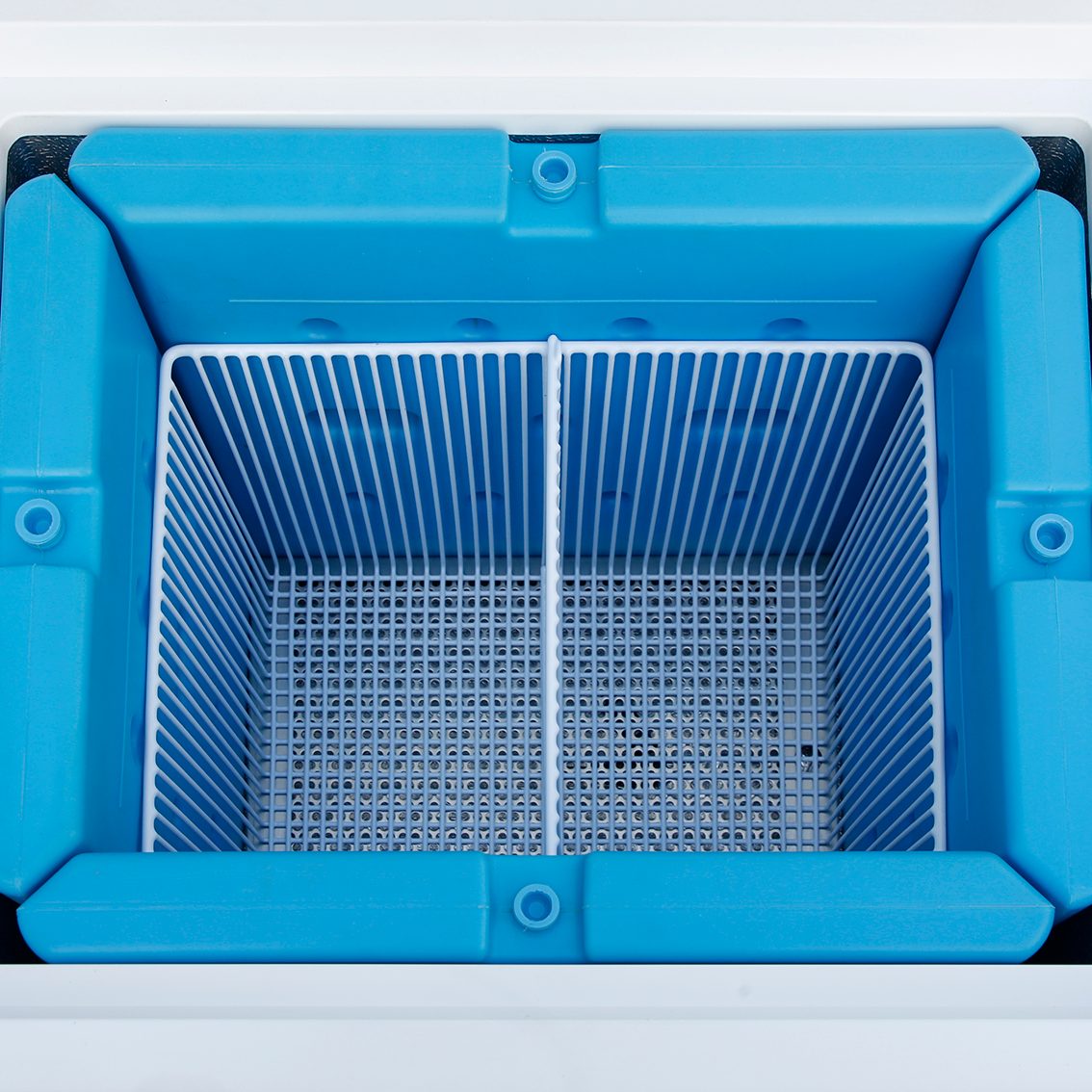

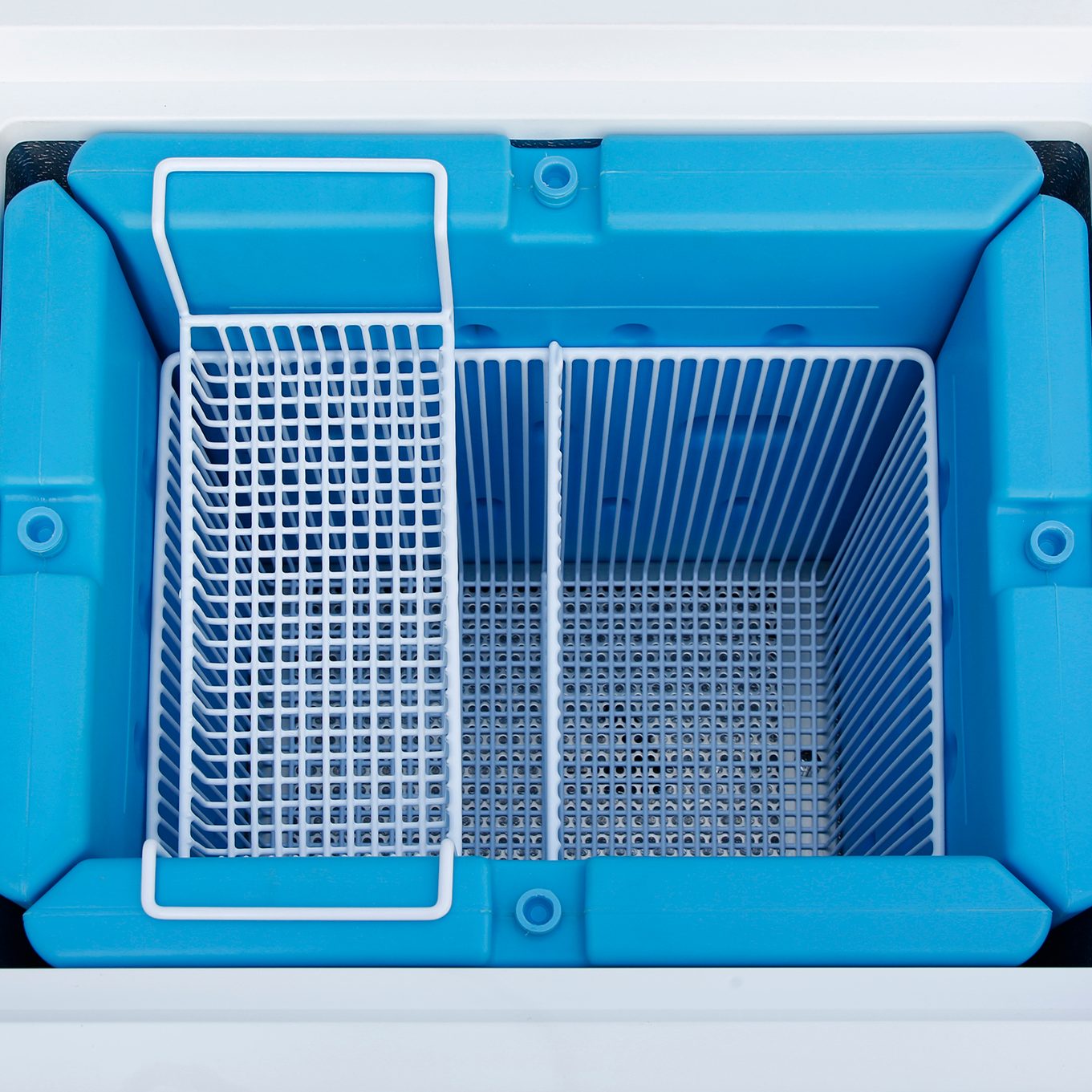

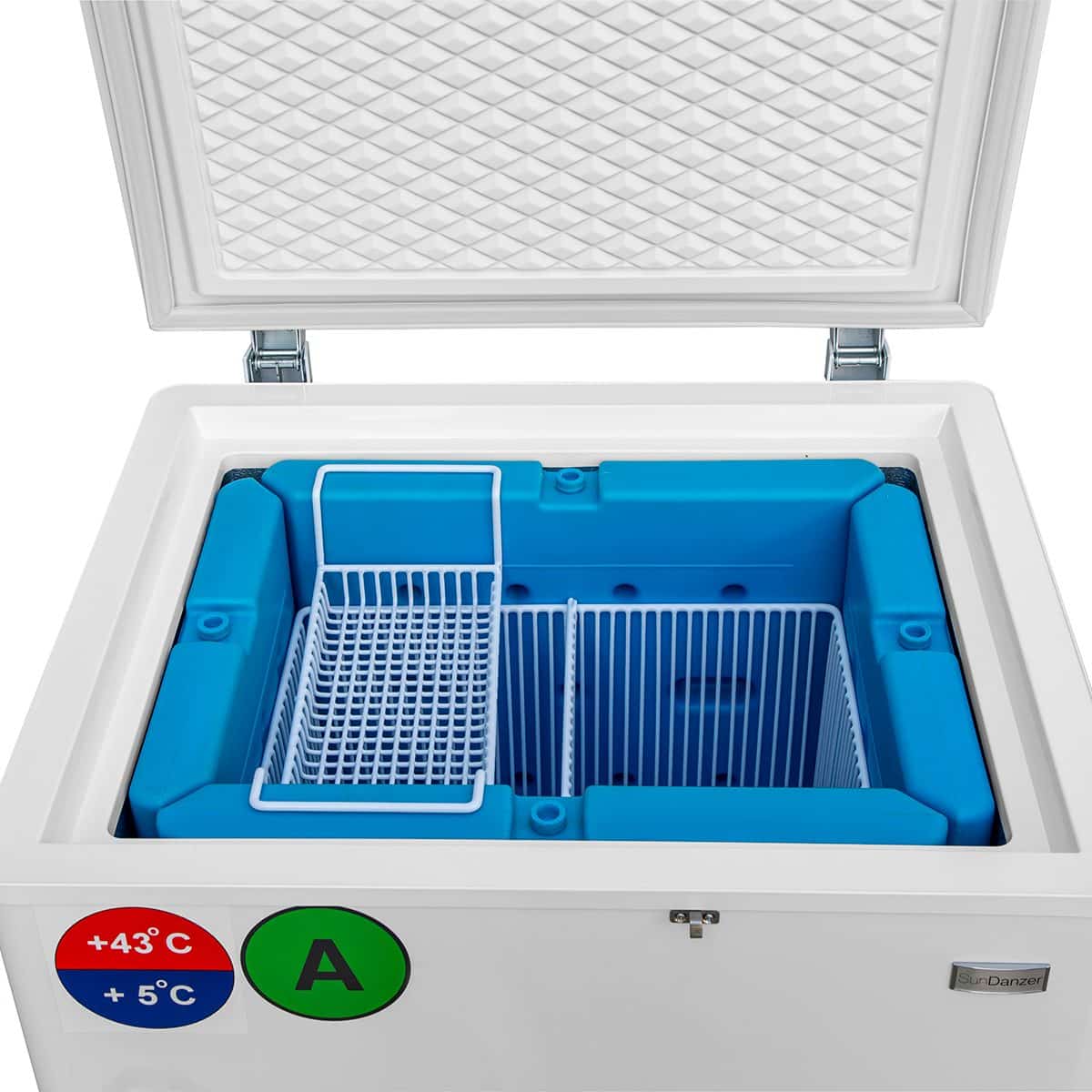

Phase Change Material
Phase change material technology to eliminate cold spots and keep vaccines at proper temperature.
LiFePO4 Battery
LiFePO4 battery technology to provide the most cycle life possible. Our batteries will provide >3000 cycles.
Auxiliary Load Compatible
Supports secondary loads such as LED lights and phone charging. Optional on some models.
No Fans Necessary
Does not need a condenser fan, so refrigeration efficiency stays the same for the entire life of the product. Less failure points means less maintenance, and less cost.
Configurable
Comes standard with battery, solar panels, and mounting hardware. Can be configured to have any combination of components. Useful if you would like to use your own battery system, solar panels, or mounting hardware.
Contact Medical@sundanzer.com for more information
Description
The DCRV36 combines thermal storage with a very long-life Lithium Iron Phosphate Battery System(>3000 full cycles ) for easy plug & play installation. The hybrid thermal storage-battery design presents a more cost-effective solution compared to direct drive vaccine refrigerators. The hybrid design it allows for a smaller PV array, more internal volume, faster cool down, and far better low light performance while meeting or exceeding all PQS requirements in the harshest ambient conditions.
The Lithium battery system’s built-in PWM charger, battery monitoring system, and load output control optimize the conditions for a long battery lifespan. The Lithium battery has an expected 7 Year service life and is small, reliable, and easy to replace.

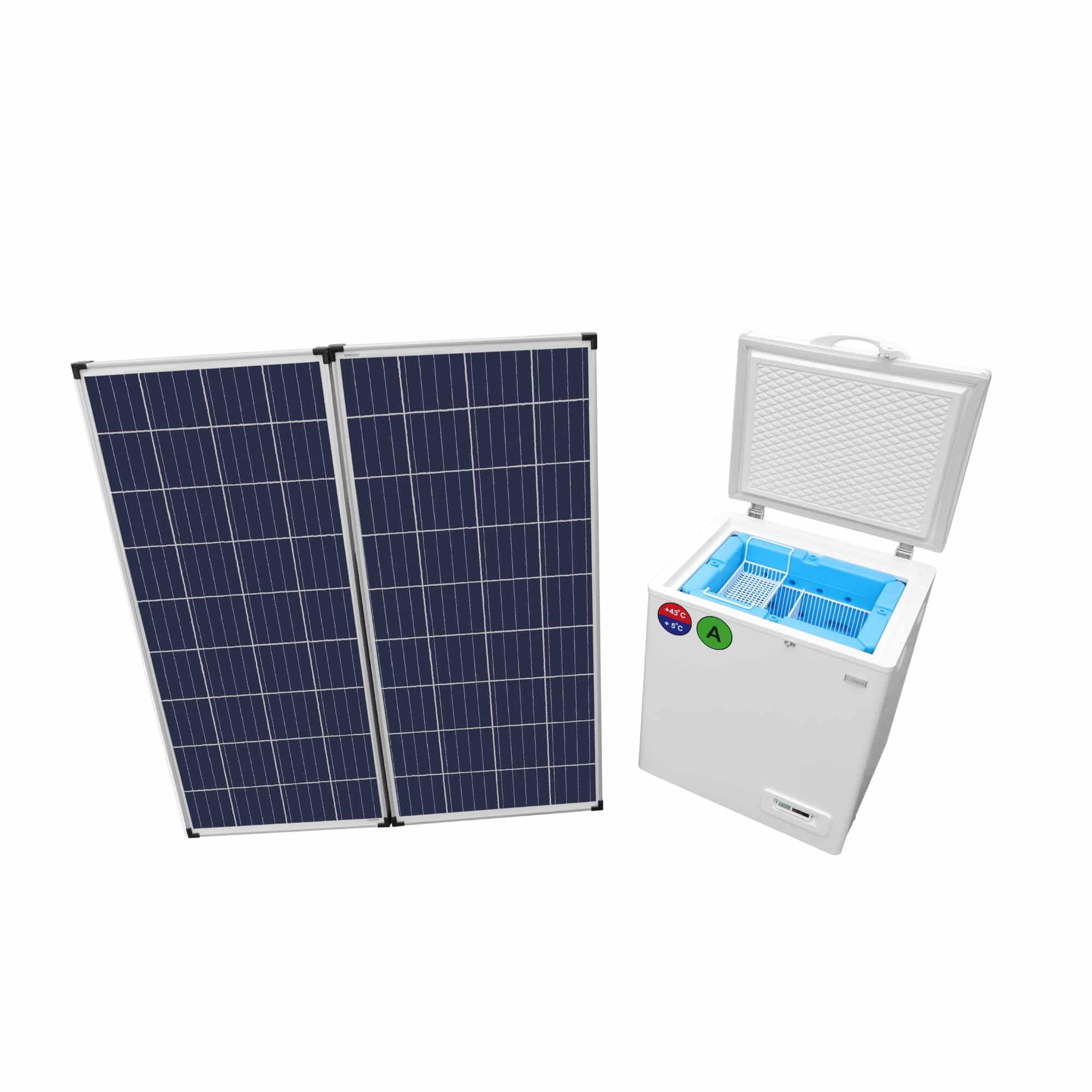

The unit ships complete with a fridge, solar panels, battery, battery charge controller, wiring, tools, temperature display, lock, and manuals. The DCRV36 can also be ordered without solar panels or batteries, so it can be used with pre-existing solar solutions.
Specifications
| Gross vaccine storage capacity | 36 Liters |
|---|---|
| Ambient range | +5° C to +43° C |
| Autonomy at 43º C | >100 hours |
| Initial cool down | <10 hours |
| Energy source | Nominal 12V solar PV |
| Req'd solar insolation | 2 kWh/m^2/day |
| Solar modules (in kit) | 2 x 150 W |
| Refrigerant | R600a |
| Battery | LiFePO4 (50 ah) |
Dimensions
| Unit dimensions (L x W x H) | 68 x 64 x 78 cm |
|---|---|
| Unit weight |
100 lbs 45.36 kg |
| Shipping Dimensions (L x W x H) | 97 x 74 x 98 cm |
| Shipping Weight |
146 lbs 66.22 kg |
