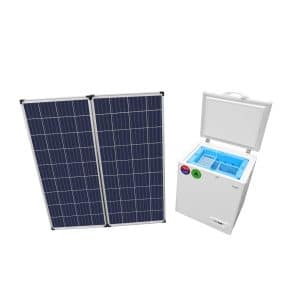

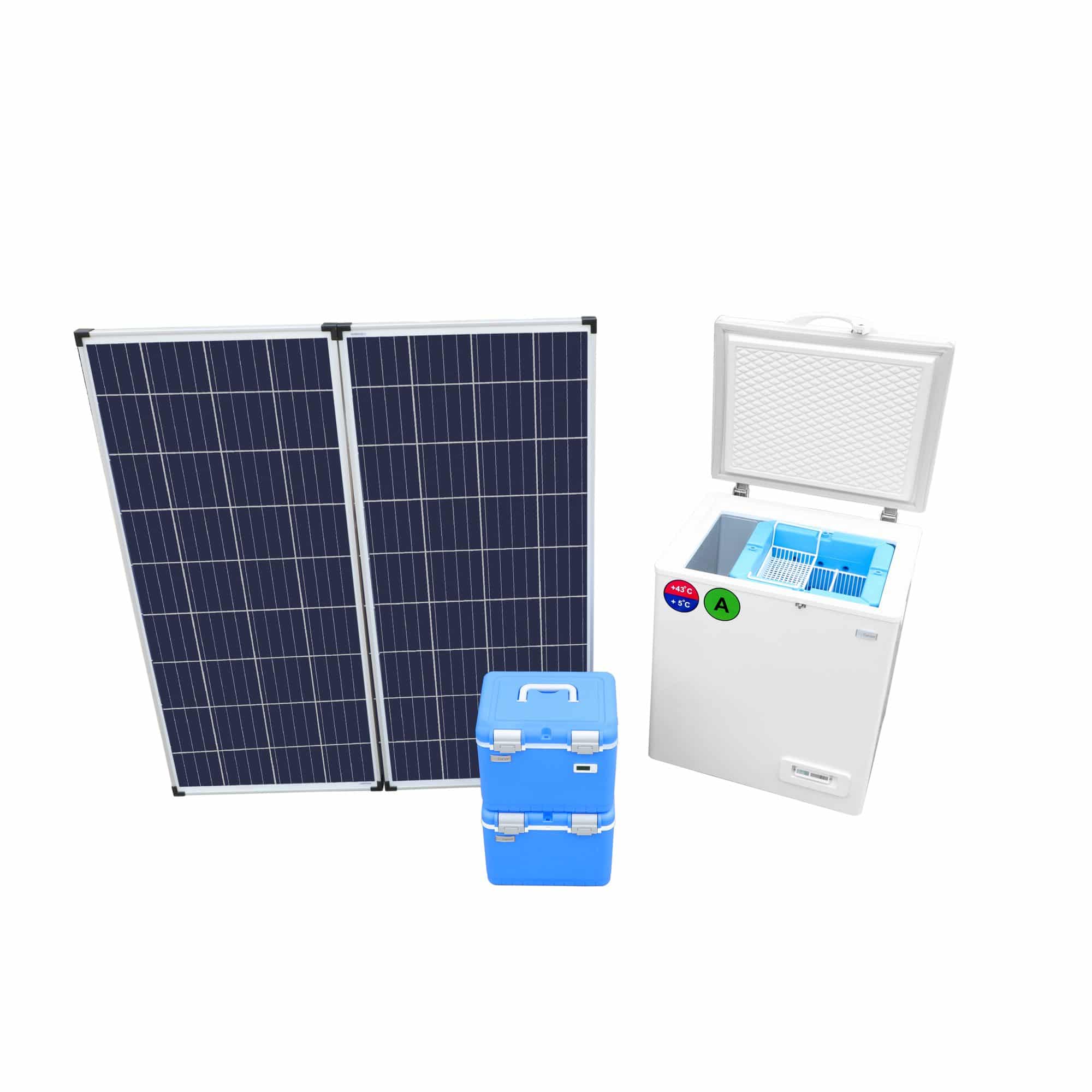

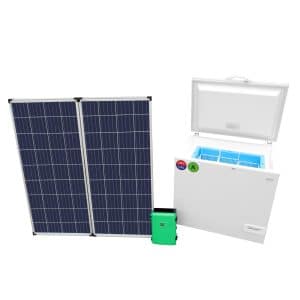

Off-grid vaccine refrigerator that also freezes PCM packs, so one unit covers the health post and outreach. Ships complete with solar kit, battery and two 4 L carriers.
Ships complete as a kit. Program and quantity pricing on request.
Eliminates cold spots and holds vaccines at the right temperature.
More than 3,000 cycles and a minimum 10-year service life, with battery monitoring and load control.
Sized for just 2.0 kWh/m²/day of sun, well below the 3.5 commonly used, so a 310 Wp kit is enough. The panels go on a normal roof or ground mount, with no east-west array or pole mount. On rainy days it keeps vaccines cold for 136 hours.
2 USB and 4 barrel ports for lights and phone charging (optional on some models).
Ships with battery, panels and mounting. Swap in your own components if your program requires it.
Warranty: 2-year replacement parts warranty and a 7-year limited prorated warranty on the LiFePO4 battery. Replacement parts only; freight, duties, installation and field labour are not included.
One unit, two jobs

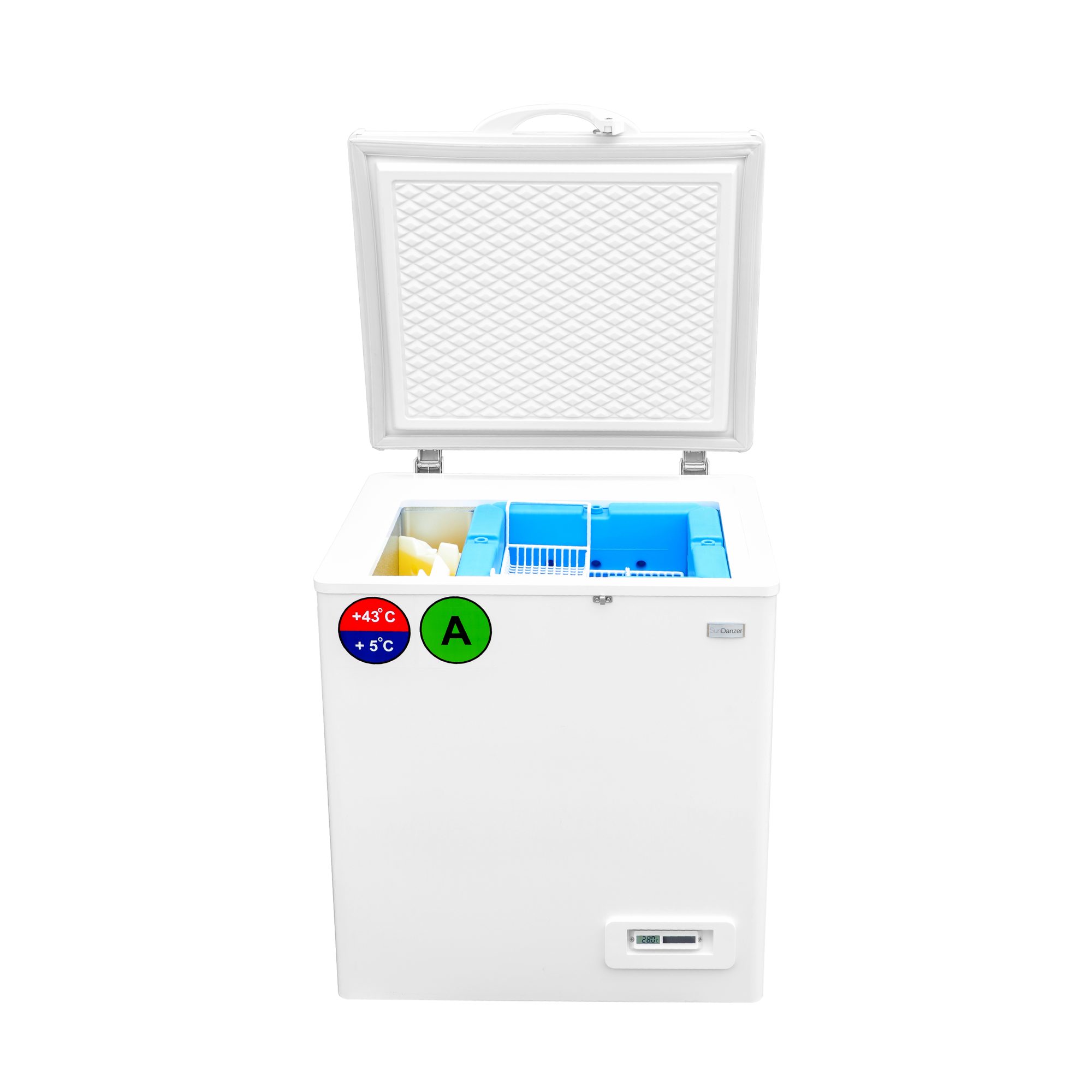

27 L of vaccines kept at +2 to +8 °C, with 81 hours of holdover at +43 °C.

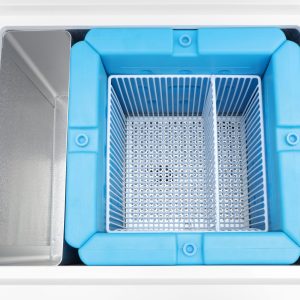

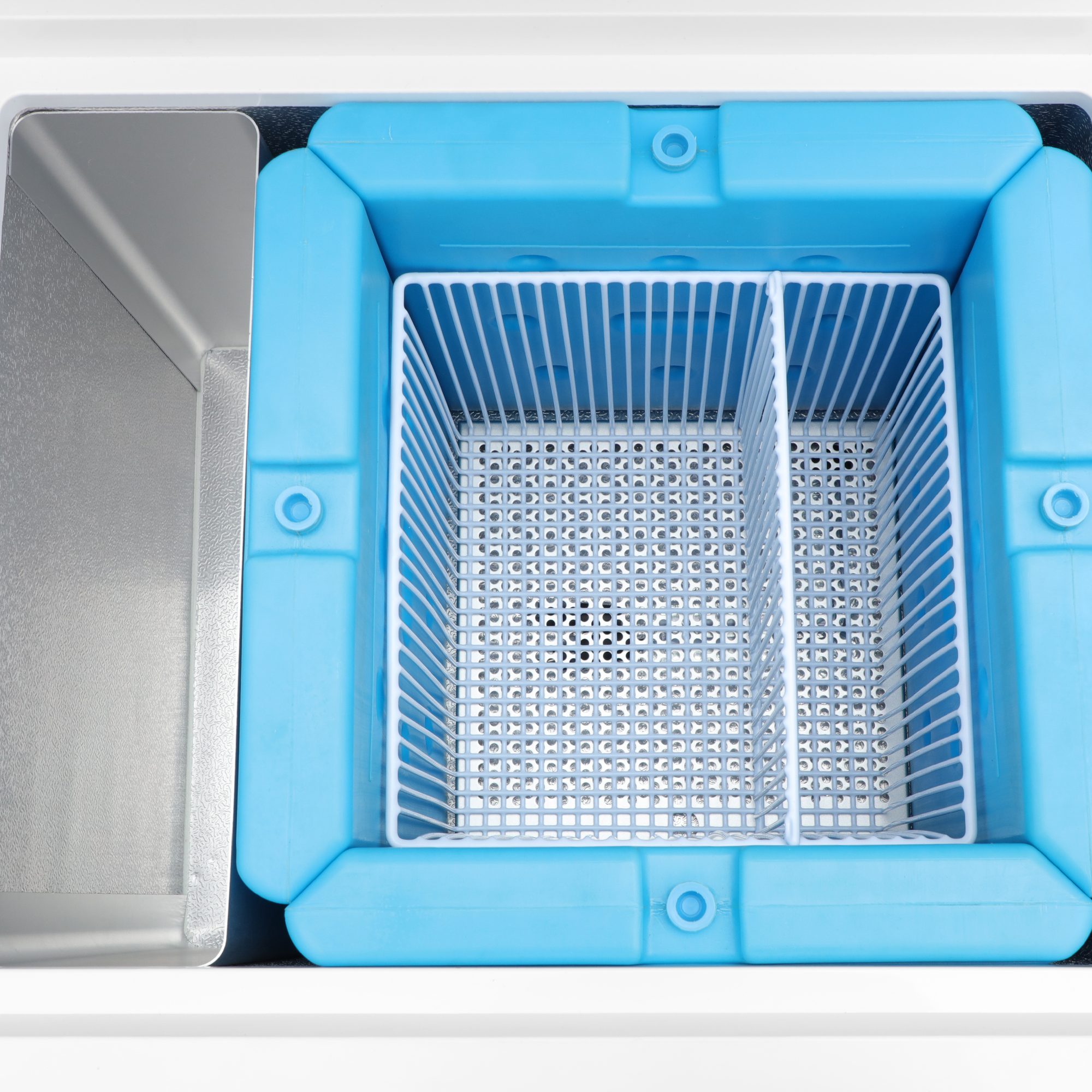

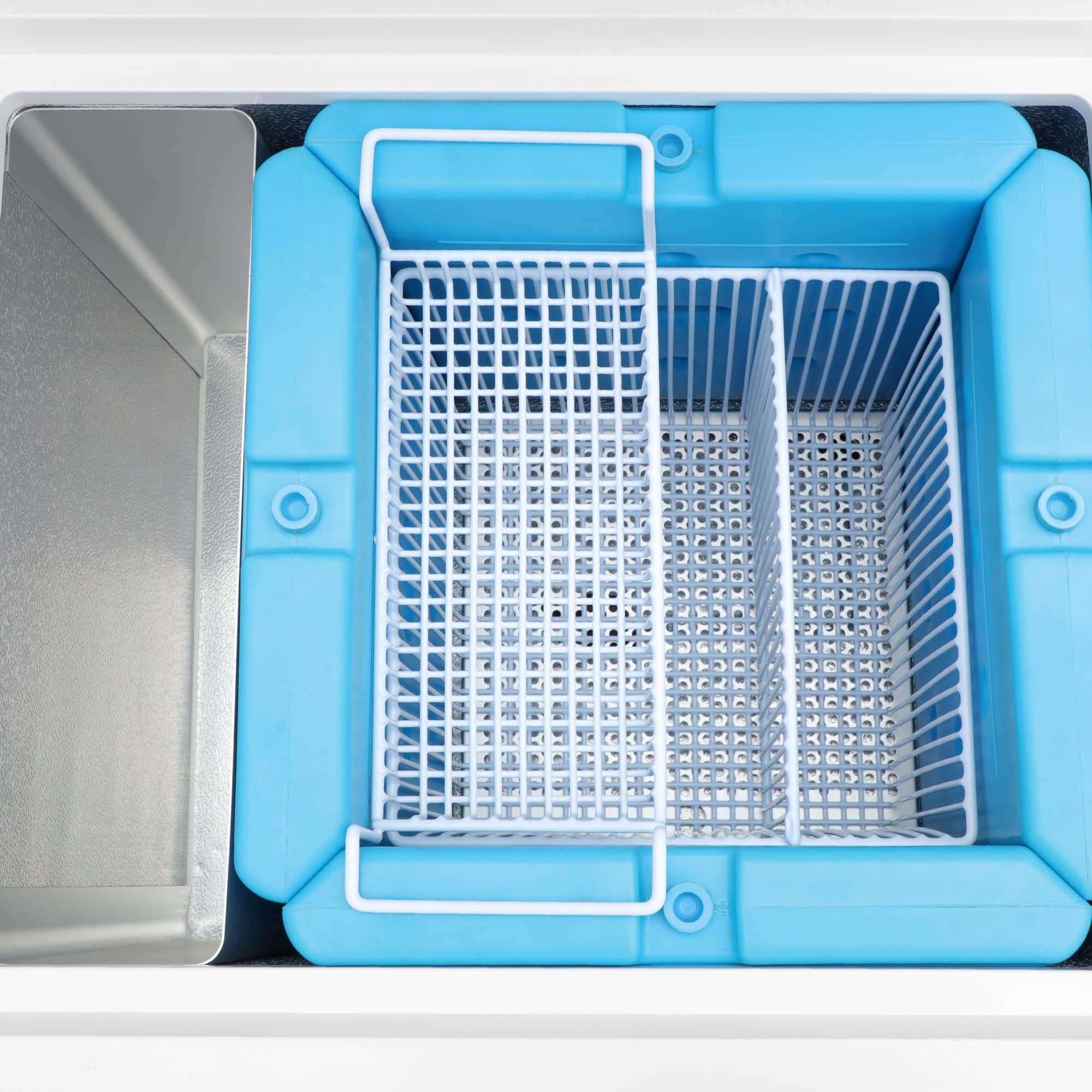

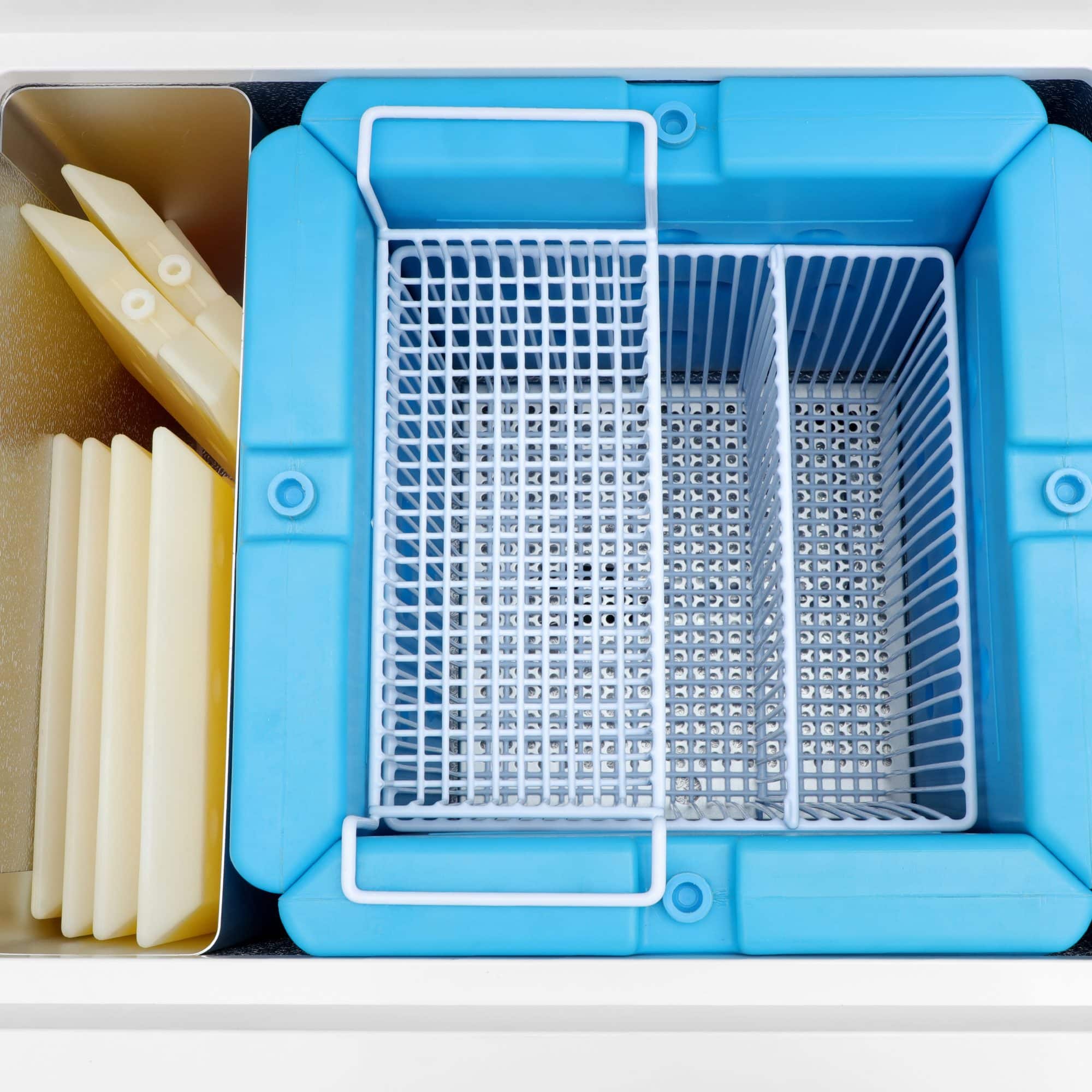

The pack compartment freezes PCM packs at 4 °C: two full sets for the 4 L carriers (9 L).

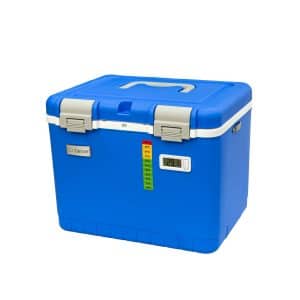

Load the packs into the 4 L carriers included in the kit and take vaccines to the community.
| Gross vaccine storage | 27 L |
|---|---|
| PCM pack storage | 9 L · 2 sets of 4 L carrier packs |
| Ambient range | +5 °C to +43 °C |
| Holdover at +43 °C | 81 h |
| Autonomy | 136 h at 310 Wp |
| Freeze protection | Grade A |
| PCM pack freezing | 2.4 kg / 24 h |
| Initial cool-down | Under 12 hours |
| First full PCM pack charge | 72 hours per compartment |
| Energy source | Nominal 12 V solar PV |
| Solar radiation reference period | 2.0 kWh/m²/day |
| Solar modules (in kit) | 310 Wp (2 × 155 Wp) |
| Battery | LiFePO4 12 V 50 Ah, 20 A PWM controller |
| Refrigerant | R600a |
| Unit (L × W × H) | 680 × 640 × 780 mm 26.8 × 25.2 × 30.7 in |
|---|---|
| Shipping volume | 0.682 m³ |
| Shipping weight | 88.6 kg · 195 lb |
| Technical sheet | SDZ-FRIDGE-TDS-002 |
Can also be ordered without solar panels or battery for sites with existing solar power.
