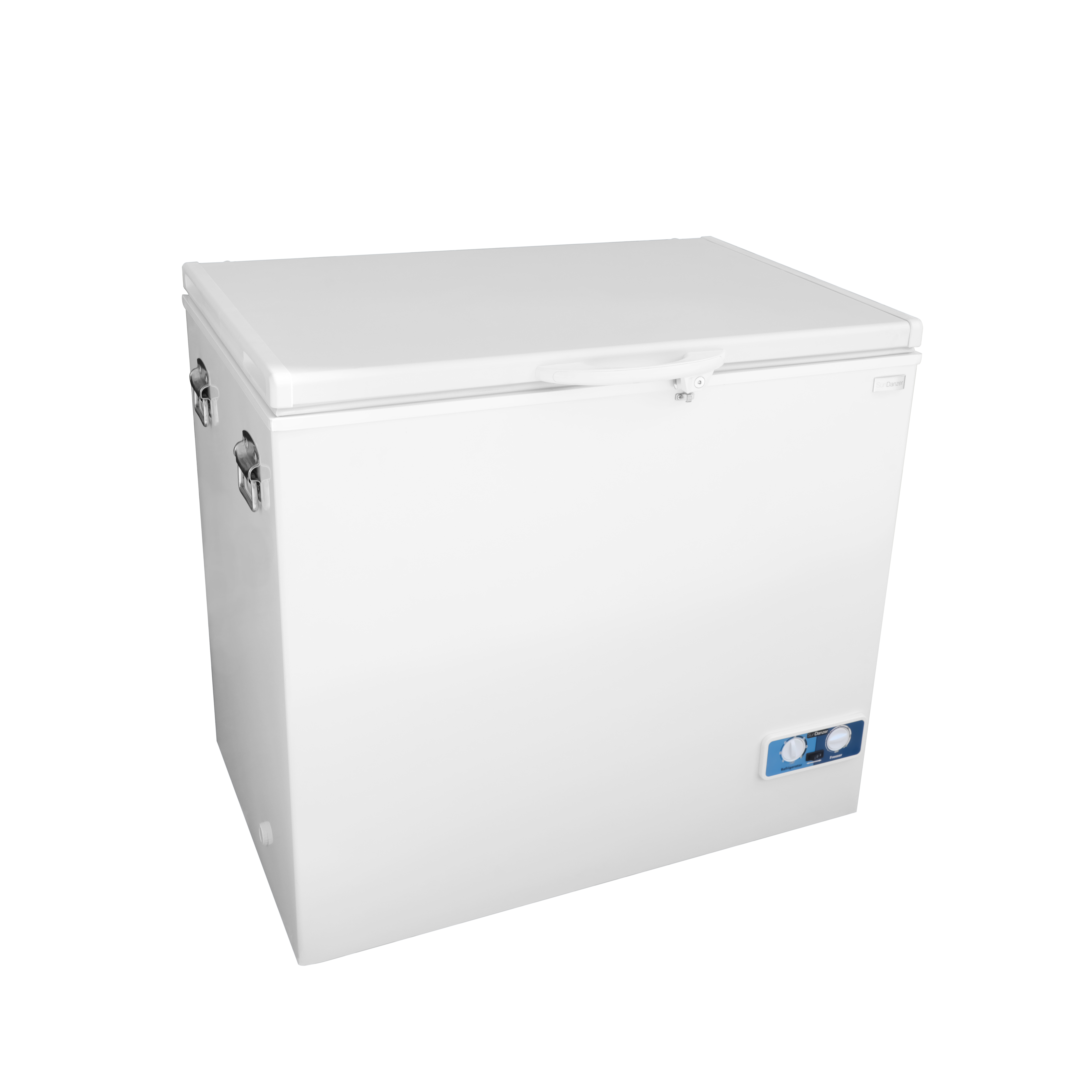

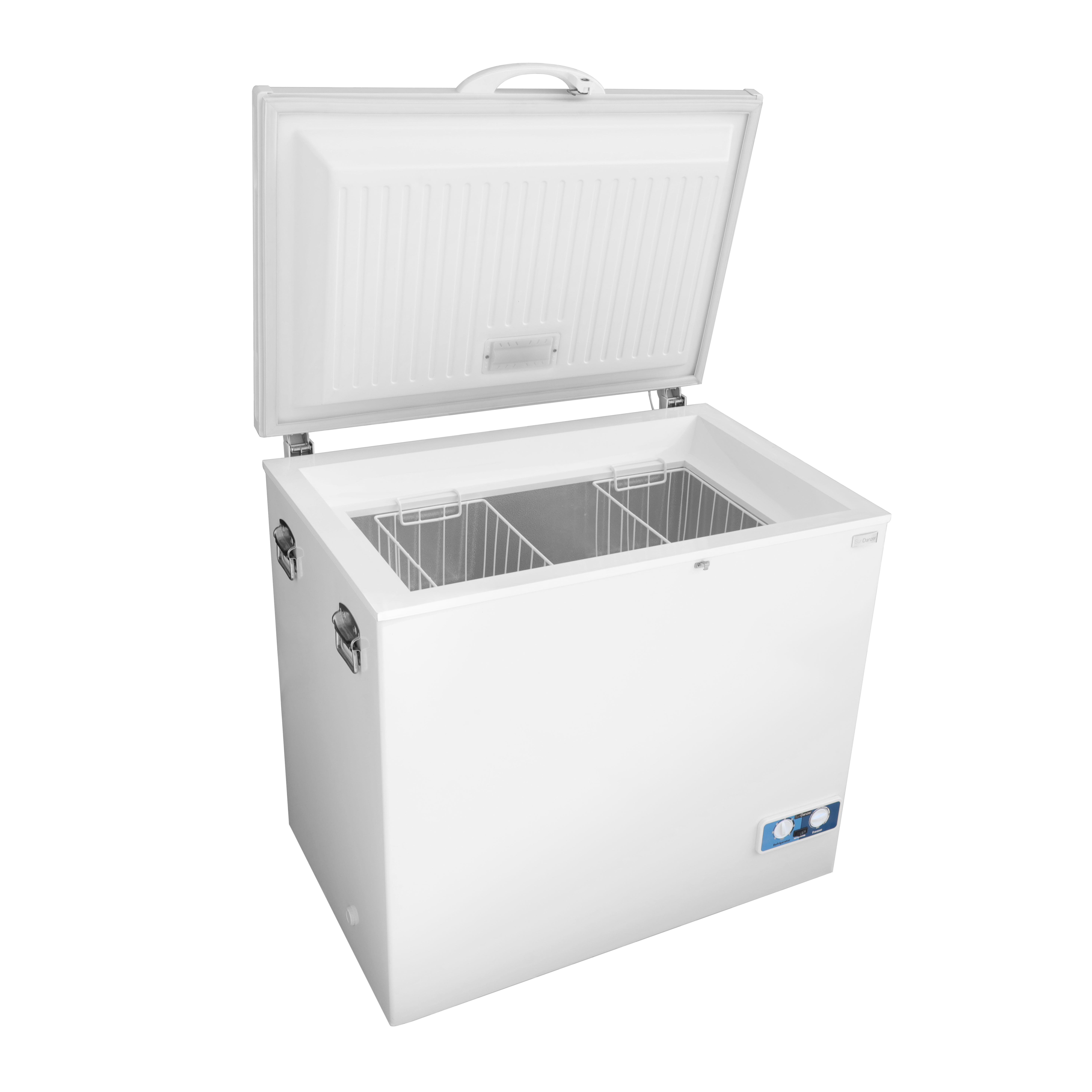

5.6 cu ft (160 L) chest fridge or freezer
Our most efficient fridge: as little as 150 Wh a day, so it runs on as little as 100 W of solar. Set it as a fridge or a freezer with the dual thermostat.
Fridge dial for minimum energy use, freezer dial for more cooling capacity. If one thermostat fails, the other can still run the compressor.
Brushless, zero-maintenance Secop compressor with a copper evaporator.
No fan power draw, no dust blockage, no bearings or fan wiring to fail.
Connects straight to a 12 or 24 V battery bank and picks the voltage automatically. 48 V version available.
110 mm of insulation, powder-coated galvanized steel outside and an easy-clean aluminum interior with a drain.
Fridge or freezer, you choose
Not both at once: for a fridge and a freezer, buy two DC160s or choose the DCRF450. *Catalog minimum at 100% battery depth of discharge; the sizing calculator adds cloudy-day margin.
Warranty: 2-year limited warranty from the purchase date against defects in workmanship and materials. Full terms are in the user manual.
| Internal volume | 160 L (5.6 cu ft) |
|---|---|
| Fridge temperature | −1 to 9 °C (30–48 °F) |
| Freezer temperature | −21 to −2 °C (−6 to 29 °F) |
| Energy as a fridge | 150 Wh/day at 32 °C (90 °F) |
| Energy as a freezer | 430 Wh/day at 32 °C (90 °F) |
| Minimum system, fridge | 100 W solar, 26 Ah battery |
| Minimum system, freezer | 220 W solar, 70 Ah battery |
| Ambient range | Up to 43 °C (110 °F) |
| Voltage range | 10–31 VDC (12/24 V) or 40–75 VDC (48 V version) |
| Input power | 35–65 W |
| Fuse | 12 V: 15 A · 24 V: 7.5 A |
| Grid power | 24 V DC power supply, 150 W |
| Compressor | Secop DC, brushless |
| Thermostat | Dual: fridge and freezer dials |
| Refrigerant | R600a |
| Defrost | Manual |
| Unit (L × W × H) | 37 × 26.25 × 34.25 in 940 × 667 × 870 mm |
|---|---|
| Insulation | 110 mm (4.3 in) polyurethane |

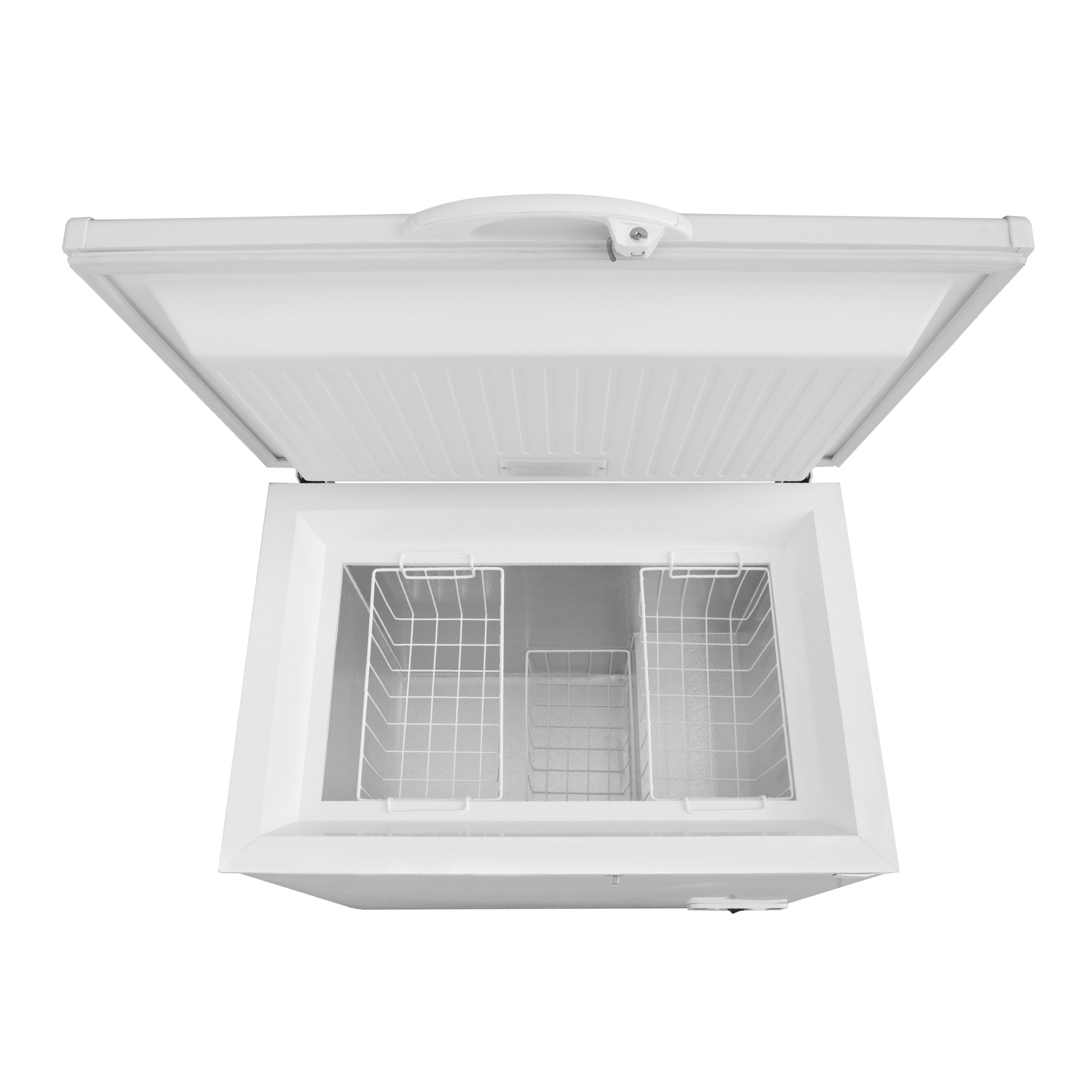

| Inside | 3 baskets, LED light, drain |
| Shipping weight | 135 lb with box and pallet · 61 kg |
| Shipping box | 38 × 29 × 39.6 in, boxed on pallet |
Solar panels, battery, charge controller and fuse not included. Fit a 15 A (12 V) or 7.5 A (24 V) automotive fuse near the battery.
Enter your location and battery. The calculator recommends panels, battery and charge controller, or checks the system you already have.
Built to order with a 3-day manufacturing lead time, then shipped by FedEx to US addresses. Shipping is calculated at checkout. Outside the US: international orders.
Two years from purchase against defects in workmanship and materials. We repair or replace defective parts (return authorization needed) and pay return shipping within the continental US. Full terms in the user manual.
Stand the unit upright for 2 hours, connect it to your battery with the supplied cord and a fuse near the battery, then let it cool for 4 hours before loading food.
