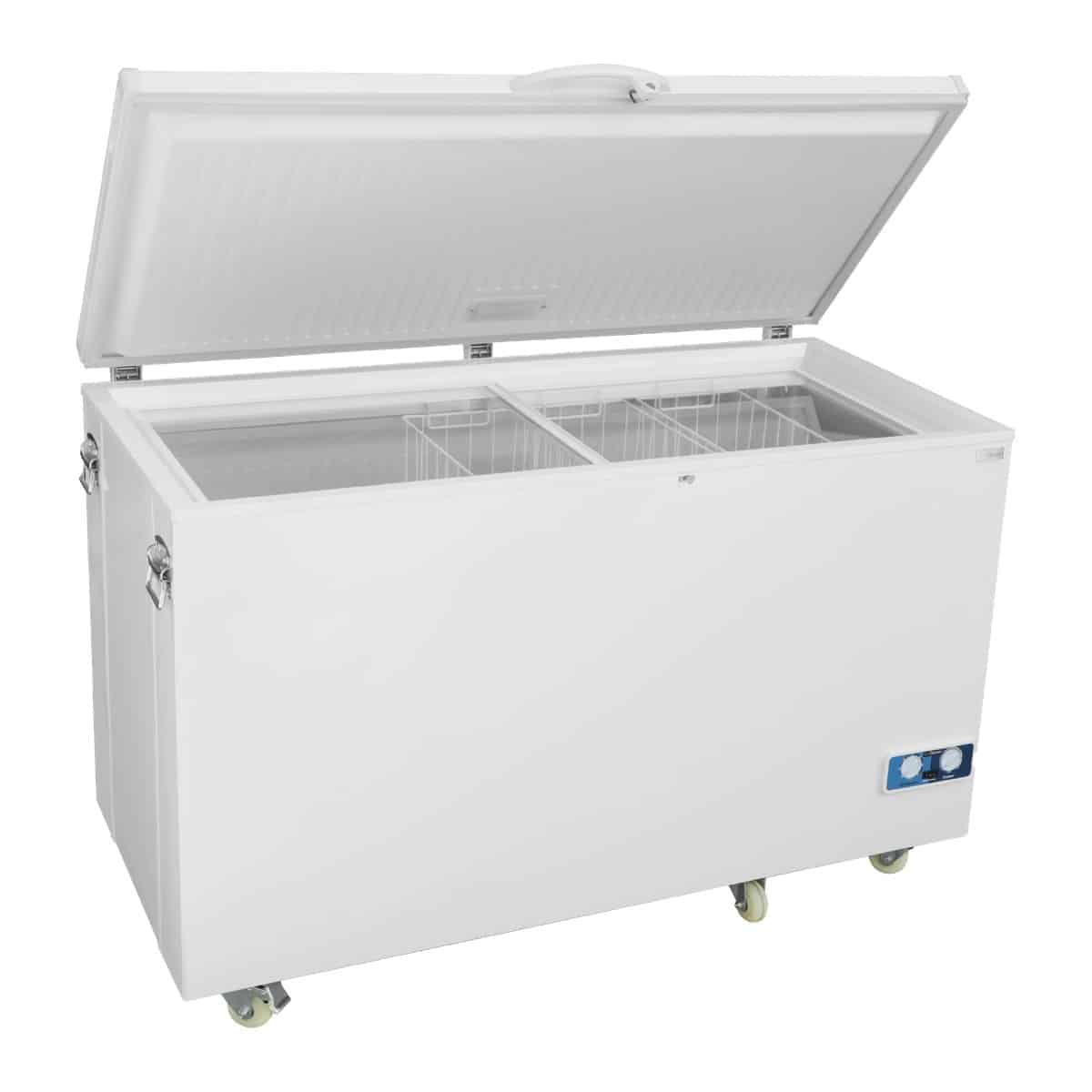

DCF400

14 cu. ft. / 400 liter Freezer

400L Freezer 12V/24V or 48V

Power

Description

Save on costs with the SunDanzer 400 liter DC freezer. This 400-liter freezer unit has exceptionally low energy consumption requiring smaller, less expensive power systems and low operating expense.

High-quality construction provides excellent reliability and long life. Super-insulated cabinets feature 90mm (3.54in) of polyurethane insulation with powdered-coated galvanized steel exterior and aluminum interior. A zero-maintenance, brushless, thermostatically controlled DC compressor operates on 12 or 24 VDC. This chest-style freezer is easy to clean with a drain hole at the bottom of the unit.

With thick insulation and a refrigeration system optimized for solar, this new SunDanzer unit will provide outstanding economical and reliable operation.

Low energy consumption is the key that allows SunDanzer refrigerators and freezers to be cost-effectively powered from solar, wind, fuel cells or batteries. This technology allows refrigeration in remote locations where it was previously unavailable or prohibitively expensive.

For a full DC400 spec sheet, please click here.

For the DC400 user manual, please click here.

Specifications
External Dimensions 63.5 x 28.75 x 34.25 in
1610 x 730 x 870 mm
Interior Volume 14 ft^3
400L
Weight 175 lbs
79.4kg
Temperature Bounds Refrigerator (Adjustable0 N/A
Temperature Bounds Freezer (Adjustable) -5.8ºF to 28.4ºF
-21ºC to -2ºC
Voltage Range Normal: 9.6V to 31.5V
48V version: 40V to 75V
Average Energy Use Refrigerator at 90ºF N/A
Average Energy Use Freezer at 90ºF 800 Watt-hrs/day
Refrigerant R290
Fuse Size 12V: 30A
24v: 15A
AC/DC option No
48V option Yes
Automatic Defrost No
Loading Quantities
20' container 24 units
40' container 48 units
