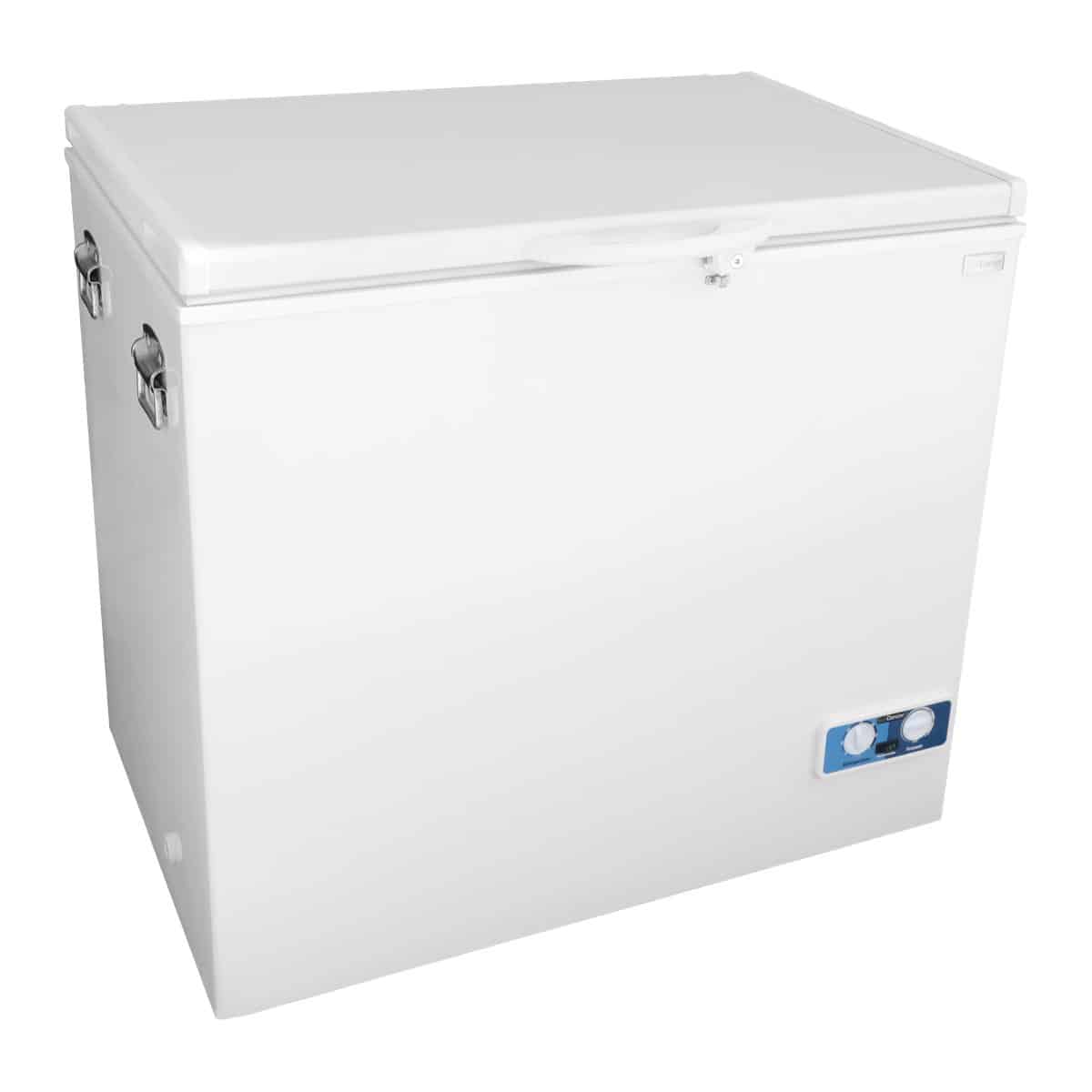

DCR160 & DCF160

5.6 cu. ft. / 159 liter Refrigerator or Freezer

159L Fridge or Freezer. 12V/24V or 48V

Type *

Power *


The DCR160 and DCF160 are Sundanzer’s new flagship products. The 160s have exceptionally low energy consumption so they are capable of being used with small and inexpensive power systems, which results in lower operating costs. High-quality construction provides excellent reliability and long life. The 160 features 110mm of polyurethane insulation with powdered-coated galvanized steel exterior and aluminum interior.

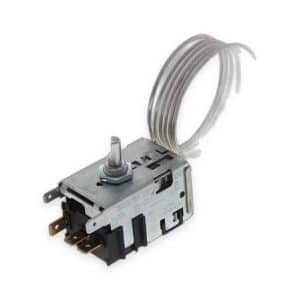

A zero maintenance, brushless, thermostatically controlled DC compressor operates on 12 or 24 VDC. A patented low-frost system reduces frost and moisture build-up for low maintenance. These chest-style refrigerators and freezers are easy to clean using the drain hole at the bottom of the unit. With thick insulation and a refrigeration system optimized for solar, SunDanzer refrigerators and freezers provide outstanding economical and reliable operation.

With the 160’s 20 years of product development, you can be assured that you are receiving Sundanzer’s highest quality product.

For a full DC160 spec sheet, please click here.

For the DC160 user manual, please click here.

External Dimensions 36.8 x 26.2 x 34.5 in
934.7 x 665.5 x 873.3 mm
Interior Volume 5.6 ft^3
Weight 130lbs
Temperature Bounds fridge (Adjustable) 23.9ºF to 50.9ºF
-4.5ºC to 10.5ºC
Temperature Bounds freezer (Adjustable) -5.8ºF to 28.4ºF
-21ºC to -2ºC
Voltage Range Normal: 9.6V to 31.5V
48V version: 40V to 75V
Needed AC-DC power supply if using Grid Power 24V DC, 150W
Average Energy Use Refrigerator at 90°F 168 Watt-hrs/day
Average Energy Use Freezer at 90°F 441 Watt-hrs/day
Refrigerant R600a
Fuse Size 12V: 15A
24V: 7.5A
AC/DC Option Yes
48V Option Yes
Automatic Defrost No
Loading Quantities
20' Container 36 Units
40' Container 72 Units
