Controls

Compressor control unit (ECU)

Name: Compressor control unit (ECU)
SKU: 5842
Availability: InStock

Replacement Secop electronic unit, 12/24 V. The right ECU depends on the compressor in your fridge, not the fridge model: pick your compressor first.

$249.00ECUs $199.00 – $275.00 · + shipping

1. Compressor model on the label

How to read the compressor label

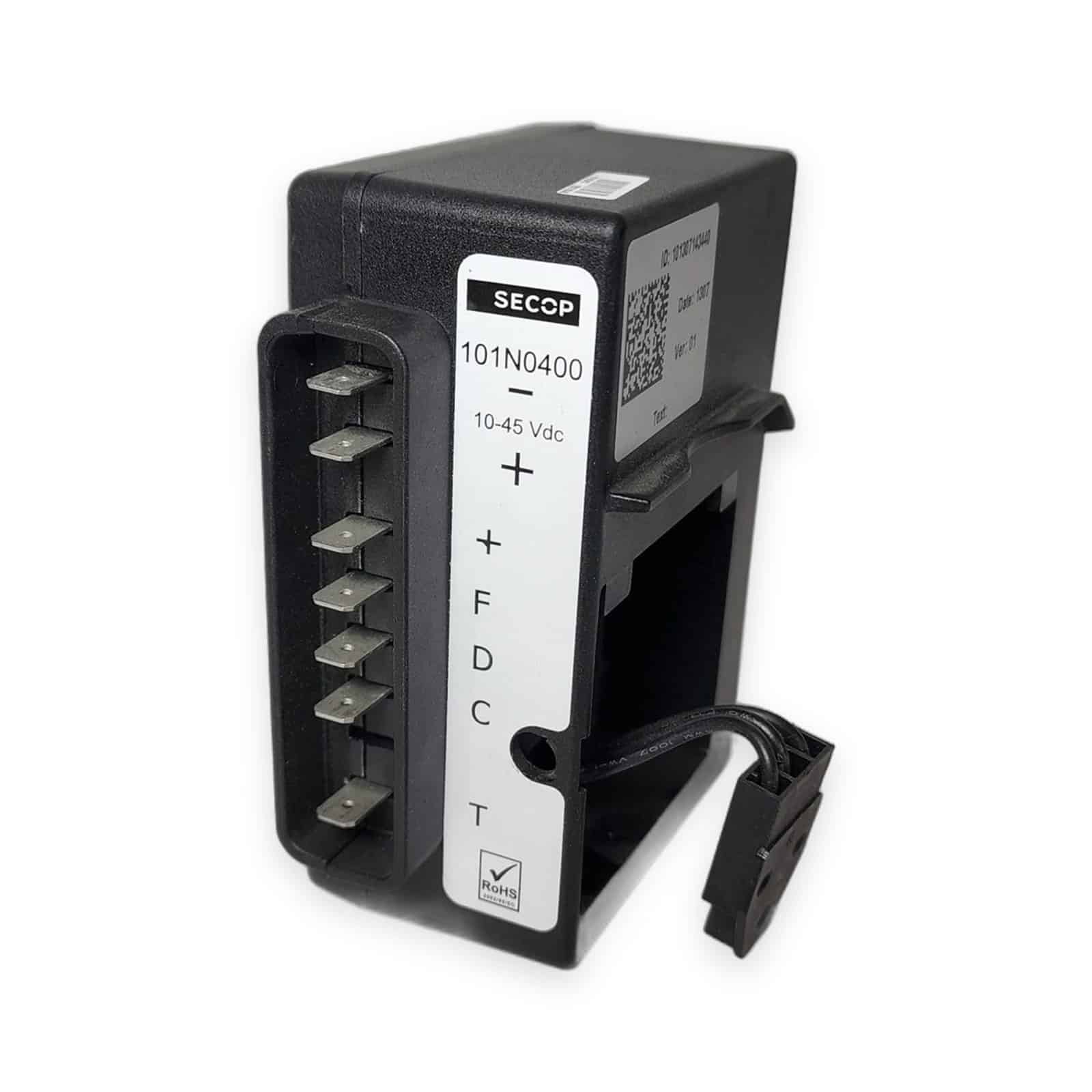

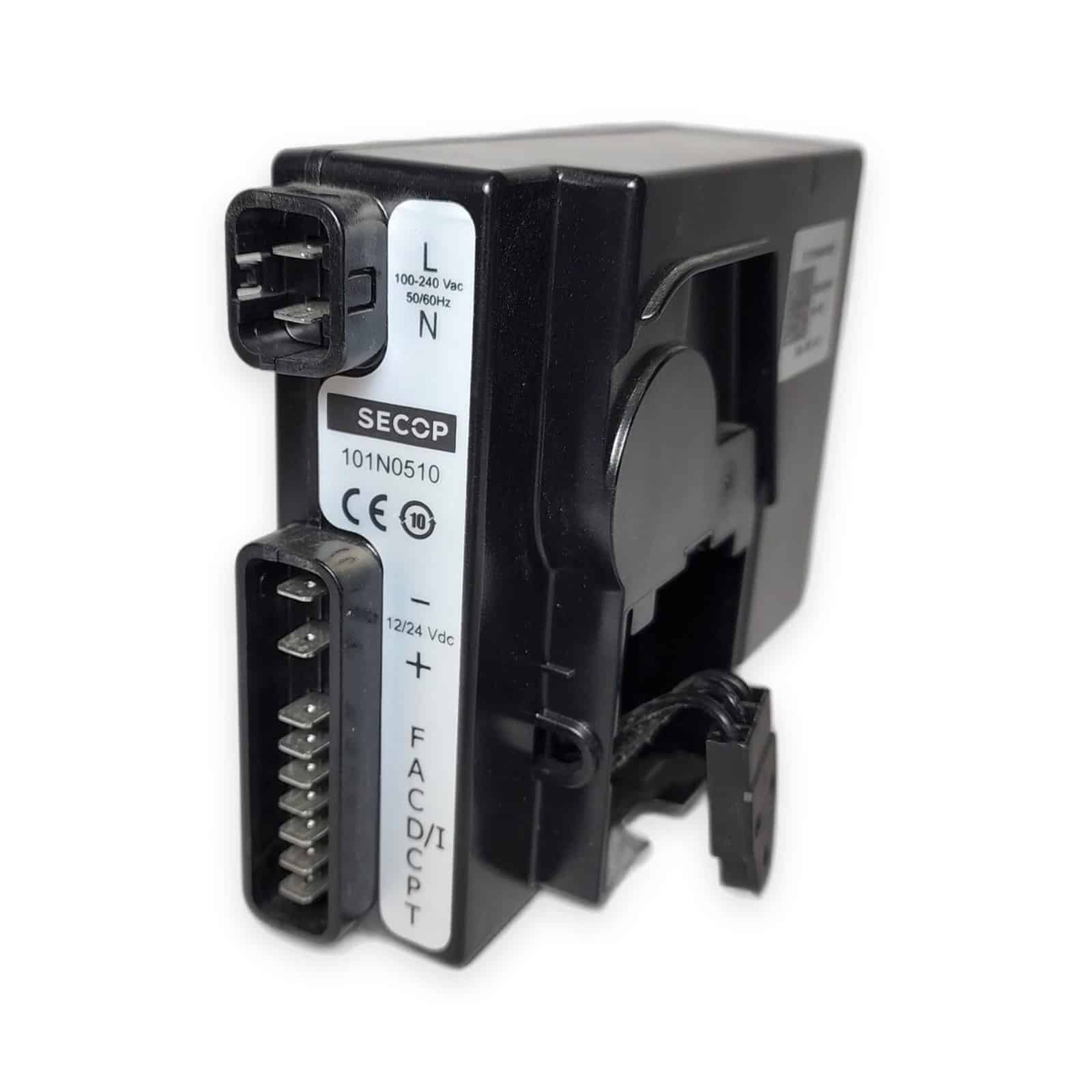

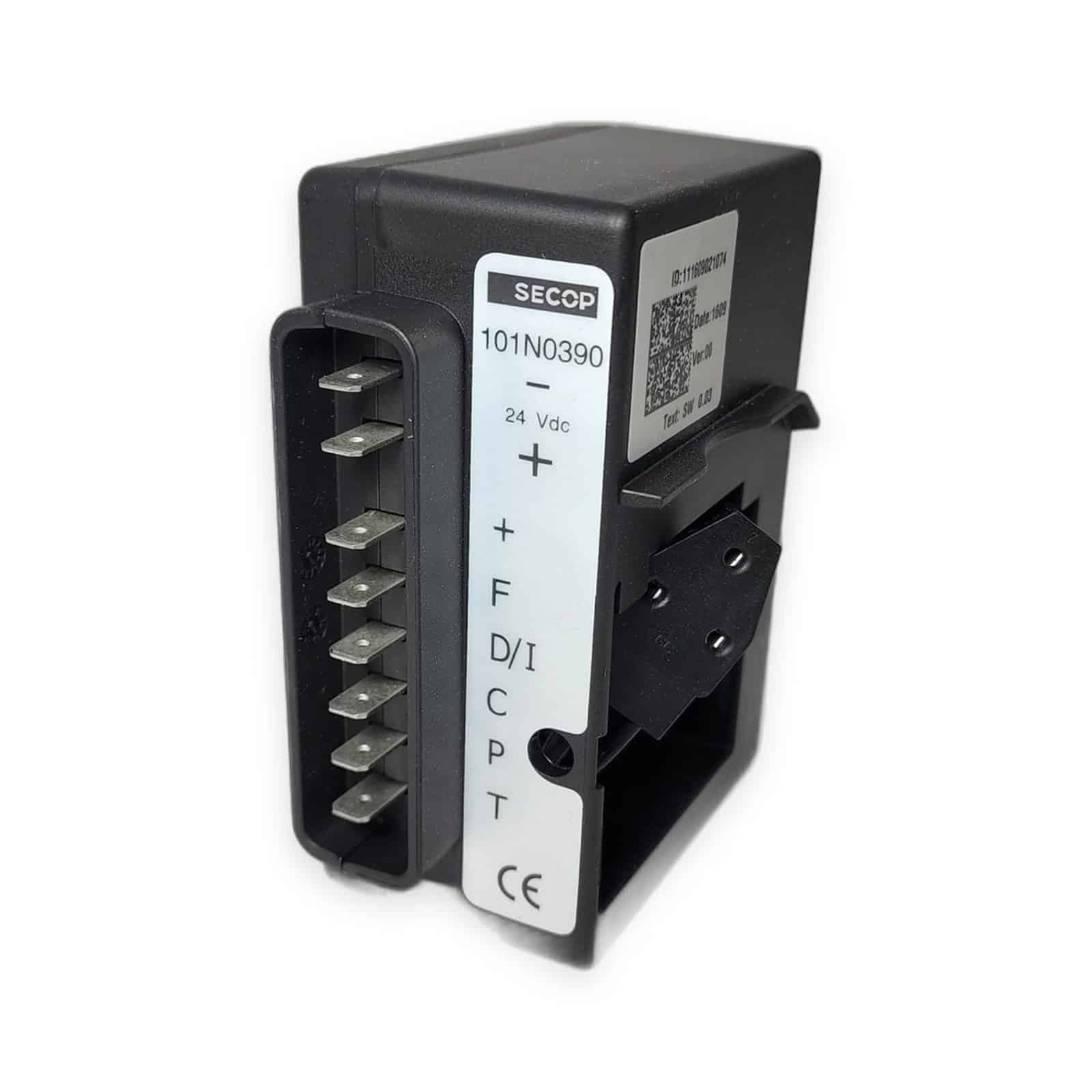

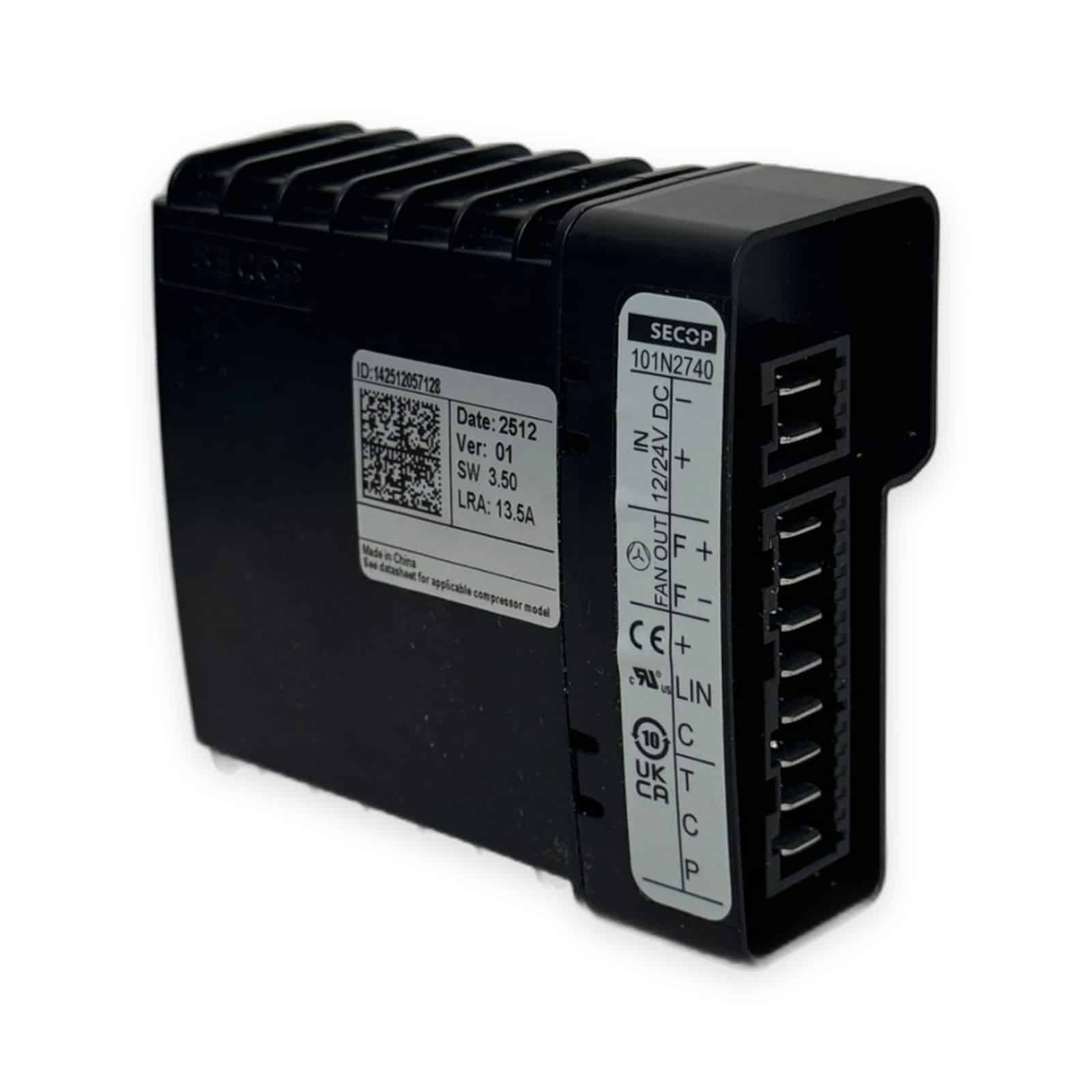

2. ECU 101N2740For the BDN50K compressor (dual-thermostat DC160)$249.00101N0242Standard · replaces the discontinued 101N0212$199.00101N0390High speed · DC400 and single-compressor DCRF450$225.00101N0400Solar$225.00101N0510AC/DC converter$275.00

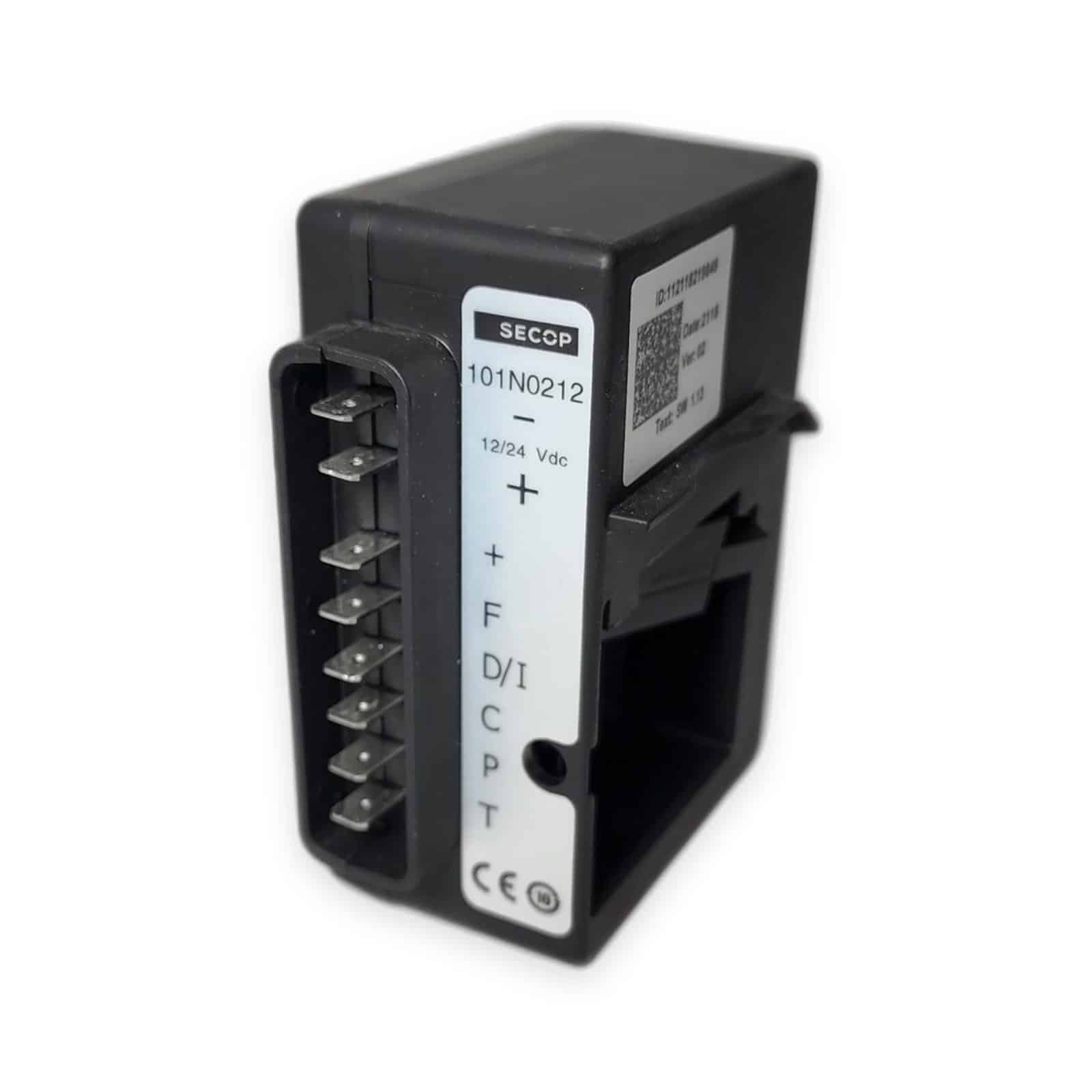

Tip: the ECU number is printed on your old unit. If it says 101N0212, order the 101N0242, which replaces it.

In stock · Ships from Tucson to US addresses · shipping calculated at checkout
Fridge under 2 years old? Start a warranty claim instead.
Not sure it's this part? Troubleshooting guide

Compatibility

Which ECU fits my compressor?

✓ fits · — not listed for this compressor

Compressor on the label	101N2740$249.00	101N0242$199.00	101N0390$225.00	101N0400$225.00	101N0510$275.00
BDN50K (dual-thermostat DC160)	✓	—	—	—	—
BD35F (mm, inch or -B)	—	✓	—	✓	✓
BD35F-HD.2	—	✓	—	—	—
BD35K (R600a)	—	✓	—	✓	✓
BD50F (mm or inch)	—	✓	—	—	✓
BD50K (R600a)	—	—	✓	—	—
BD80F	—	—	✓	—	—
BD80CN (R290)	—	✓	—	—	✓
BD100CN (R290)	—	—	✓	—	—
BD250GH.2, 12/24 V	—	—	✓	—	—
Cascade	No longer available · email us for a discount on a new unit
DCRF450 with two compressors	Email us with your serial number

Compressor not listed, or the label is unreadable? Email a photo of it and we'll match it for you.

The ECU (electronic control unit) is the box mounted on the compressor that runs it. SunDanzer models have used several compressors over the years, so choose the ECU by the model on your compressor label. If your old ECU's number is listed above, order the same one; a 101N0212 is replaced by the 101N0242.

Read your compressor label

Disconnect the fridge from the battery.
Find the compressor in the machine compartment at the back of the unit. The ECU is the black box fixed to it.
Read the model on the compressor label: it starts with BD or BDN, for example BDN50K or BD35F.
Note the number on the ECU label (for example 101N2740 or 101N0242).

Not sure the ECU is the fault? The troubleshooting guide walks through the ECU checks before you buy. Compressor not listed, or the label is unreadable? Email us a photo.
